Y-Manifolds

Y-Manifolds are external conduit fittings. These asymmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.
Features:

Compact design - Reducing distance between centres
High pull-off strength – Conduit corrugations sit tightly into joiner junctions
Integral retaining clips - Retains conduit in position during assembly
Internal form of fittings protects cables from abrasion
Internal backstop alleviates any potential problems caused by unevenly cut conduit and ensures correct assembly
All Harnessflex Y-Manifolds can be used with CCSB to further enhance the conduit and connection's tensile and bending performance
Temperature range: Long term: -40°C to +120°C
UV resistance: Very high (Black)
Fire perfomance: Self extinguishing, Low smoke toxicity, Halogen free
Approvals:

CE Mark to the Low Voltage Directive
RoHS Compliant to 2011/65/EU
Conforms with End of Life Vehicle directive (ELV) EU200/53/EC

ABB Harnessflex YPS080808 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 08-08-08 / NW 7.5-7.5-7.5

Part number:: YPS080808
Equates :: 9817079
Color :: Black

Stock:: 161 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.81* /pcs.
From 25 pcs.	€0.54* /pcs.
From 100 pcs.	€0.44* /pcs.
From 1000 pcs.	€0.40* /pcs.

ABB Harnessflex YPS081208 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 08-12-08 / NW 7.5-10-7.5

Part number:: YPS081208
Color :: Black
Manufacturer :: ABB

Stock:: 954 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.11* /pcs.
From 25 pcs.	€0.74* /pcs.
From 100 pcs.	€0.61* /pcs.
From 1000 pcs.	€0.55* /pcs.

ABB Harnessflex YPS101010 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 10-10-10 / NW 8.5-8.5-8.5

Part number:: YPS101010
Equates :: 9817040
Color :: Black

Stock:: 699 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.85* /pcs.
From 25 pcs.	€0.57* /pcs.
From 100 pcs.	€0.47* /pcs.
From 1000 pcs.	€0.42* /pcs.

ABB Harnessflex YPS120808 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-8-8 / NW 10-7.5-7.5

Part number:: YPS120808
Color :: Black
Manufacturer :: ABB

Stock:: 365 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.94* /pcs.
From 25 pcs.	€0.63* /pcs.
From 100 pcs.	€0.52* /pcs.
From 1000 pcs.	€0.47* /pcs.

ABB Harnessflex YPS120810 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-8-10 / NW 10-7.5-8.5

Part number:: YPS120810
Color :: Black
Manufacturer :: ABB

Stock:: 984 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.85* /pcs.
From 25 pcs.	€0.57* /pcs.
From 100 pcs.	€0.47* /pcs.
From 1000 pcs.	€0.42* /pcs.

ABB Harnessflex YPS120812 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-8-12 / NW 10-7.5-10

Part number:: YPS120812
Color :: Black
Manufacturer :: ABB

Stock:: 897 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.01* /pcs.
From 25 pcs.	€0.67* /pcs.
From 100 pcs.	€0.56* /pcs.
From 1000 pcs.	€0.51* /pcs.

ABB Harnessflex YPS121010 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-10-10 / NW 10-8.5-8.5

Part number:: YPS121010
Equates :: 9817041
Color :: Black

Stock:: 581 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.84* /pcs.
From 25 pcs.	€0.56* /pcs.
From 100 pcs.	€0.46* /pcs.
From 1000 pcs.	€0.42* /pcs.

ABB Harnessflex YPS121208 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-12-8 / NW 10-10-7.5

Part number:: YPS121208
Color :: Black
Manufacturer :: ABB

Stock:: 1006 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.99* /pcs.
From 25 pcs.	€0.66* /pcs.
From 100 pcs.	€0.55* /pcs.
From 1000 pcs.	€0.50* /pcs.

ABB Harnessflex YPS121210 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-12-10 / NW 10-10-8.5

Part number:: YPS121210
Equates :: 9817030
Color :: Black

Stock:: 954 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.85* /pcs.
From 25 pcs.	€0.57* /pcs.
From 100 pcs.	€0.47* /pcs.
From 1000 pcs.	€0.42* /pcs.

ABB Harnessflex YPS121212 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 12-12-12 / NW 10-10-10

Part number:: YPS121212
Equates :: 9817303
Color :: Black

Stock:: 750 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.83* /pcs.
From 25 pcs.	€0.55* /pcs.
From 100 pcs.	€0.46* /pcs.
From 1000 pcs.	€0.42* /pcs.

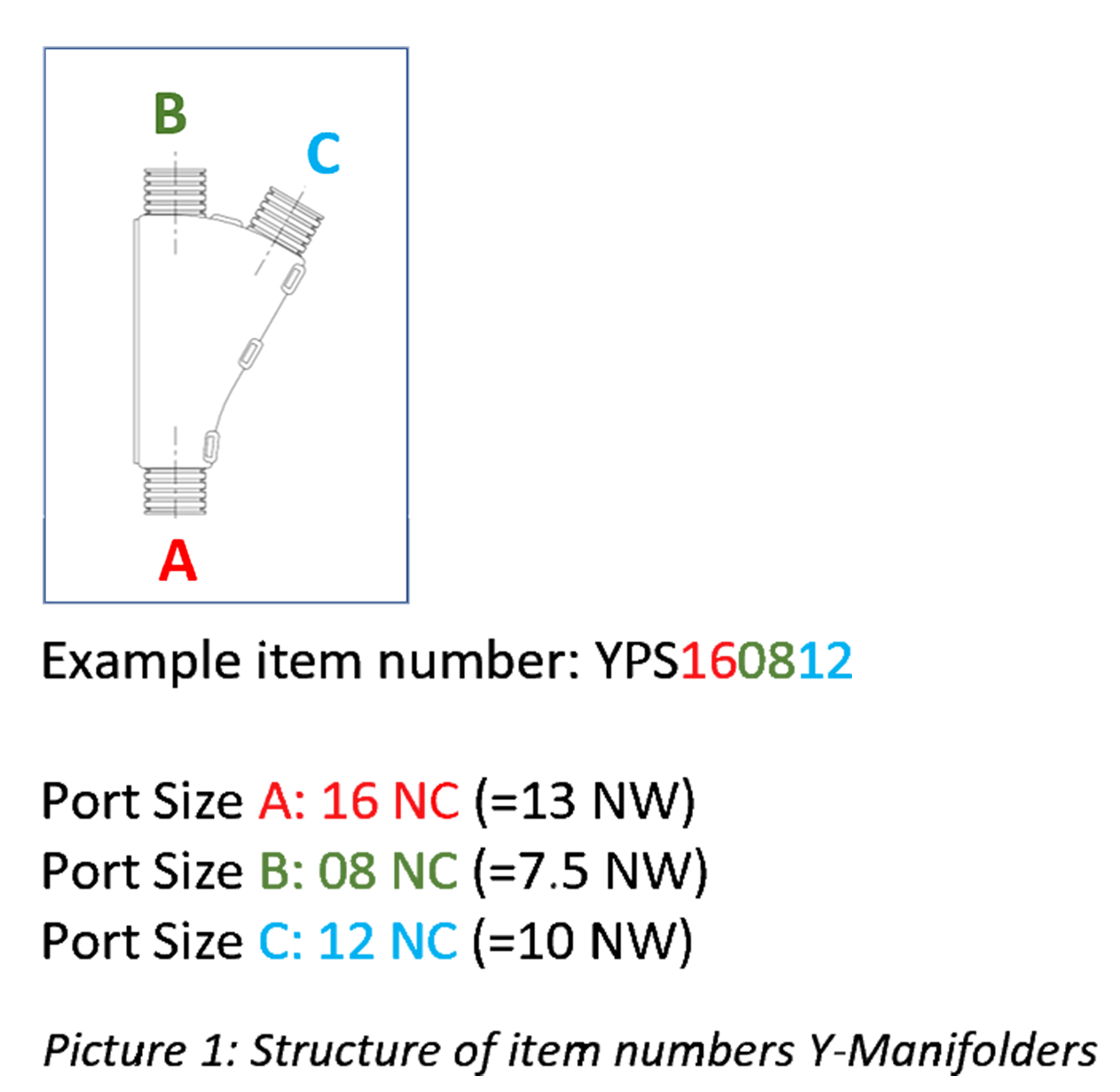

ABB Harnessflex YPS160812 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-08-12 / NW 13-7.5-10

Part number:: YPS160812
Color :: Black
Manufacturer :: ABB

Stock:: 402 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.93* /pcs.
From 25 pcs.	€0.62* /pcs.
From 100 pcs.	€0.51* /pcs.
From 500 pcs.	€0.47* /pcs.

ABB Harnessflex YPS161010 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-10-10 / NW 13-8.5-8.5

Part number:: YPS161010
Equates :: 9817037
Color :: Black

Stock:: 429 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.93* /pcs.
From 25 pcs.	€0.62* /pcs.
From 100 pcs.	€0.51* /pcs.
From 500 pcs.	€0.47* /pcs.

ABB Harnessflex YPS161210 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-12-10 / NW 13-10-8.5

Part number:: YPS161210
Equates :: 9817031
Color :: Black

Stock:: 475 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.10* /pcs.
From 25 pcs.	€0.73* /pcs.
From 100 pcs.	€0.61* /pcs.
From 500 pcs.	€0.55* /pcs.

ABB Harnessflex YPS161212 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-12-12 / NW 13-10-10

Part number:: YPS161212
Equates :: 9817306
Color :: Black

Stock:: 153 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.06* /pcs.
From 25 pcs.	€0.70* /pcs.
From 100 pcs.	€0.58* /pcs.
From 500 pcs.	€0.53* /pcs.

ABB Harnessflex YPS161608 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-16-08 / NW 13-13-7.5

Part number:: YPS161608
Color :: Black
Manufacturer :: ABB

Stock:: 514 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.98* /pcs.
From 25 pcs.	€0.66* /pcs.
From 100 pcs.	€0.54* /pcs.
From 500 pcs.	€0.49* /pcs.

ABB Harnessflex YPS161610 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 16-16-10 / NW 13-13-8.5

Part number:: YPS161610
Equates :: 9817032
Color :: Black

Stock:: 450 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.93* /pcs.
From 25 pcs.	€0.62* /pcs.
From 100 pcs.	€0.51* /pcs.
From 500 pcs.	€0.47* /pcs.

ABB Harnessflex YPS200808 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-08-08 / NW 17-7.5-7.5

Part number:: YPS200808
Color :: Black
Manufacturer :: ABB

Stock:: 294 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.06* /pcs.
From 25 pcs.	€0.71* /pcs.
From 100 pcs.	€0.58* /pcs.
From 500 pcs.	€0.53* /pcs.

ABB Harnessflex YPS201208 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-12-08 / NW 17-10-7.5

Part number:: YPS201208
Color :: Black
Manufacturer :: ABB

Stock:: 325 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.06* /pcs.
From 25 pcs.	€0.71* /pcs.
From 100 pcs.	€0.58* /pcs.
From 500 pcs.	€0.53* /pcs.

ABB Harnessflex YPS201210 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-12-10 / NW 17-10-8.5

Part number:: YPS201210
Equates :: 9817158
Color :: Black

Stock:: 483 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.06* /pcs.
From 25 pcs.	€0.71* /pcs.
From 100 pcs.	€0.58* /pcs.
From 500 pcs.	€0.53* /pcs.

ABB Harnessflex YPS201212 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-12-12 / NW 17-10-10

Part number:: YPS201212
Equates :: 9817033
Color :: Black

Stock:: 387 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.99* /pcs.
From 25 pcs.	€0.66* /pcs.
From 100 pcs.	€0.54* /pcs.
From 500 pcs.	€0.49* /pcs.

ABB Harnessflex YPS201608 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-16-08 / NW 17-13-7.5

Part number:: YPS201608
Color :: Black
Manufacturer :: ABB

Stock:: 426 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.12* /pcs.
From 25 pcs.	€0.74* /pcs.
From 100 pcs.	€0.61* /pcs.
From 500 pcs.	€0.56* /pcs.

ABB Harnessflex YPS201612 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-16-12 / NW 17-13-10

Part number:: YPS201612
Equates :: 9817035
Color :: Black

Stock:: 252 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.80* /pcs.
From 25 pcs.	€0.54* /pcs.
From 100 pcs.	€0.44* /pcs.
From 500 pcs.	€0.40* /pcs.

ABB Harnessflex YPS201616 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-16-16 / NW 17-13-13

Part number:: YPS201616
Equates :: 9817036
Color :: Black

Stock:: 370 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€0.99* /pcs.
From 25 pcs.	€0.66* /pcs.
From 100 pcs.	€0.54* /pcs.
From 500 pcs.	€0.50* /pcs.

ABB Harnessflex YPS202010 - Y-Manifold YPS-Typ for Corrugated Tubes Size NC 20-20-10 / NW 17-17-8.5

Part number:: YPS202010
Equates :: 9817174
Color :: Black

Stock:: 498 pcs.
Lead time for more:: 1-4 wk.

From 1 pcs.	€1.06* /pcs.
From 25 pcs.	€0.71* /pcs.
From 100 pcs.	€0.58* /pcs.
From 500 pcs.	€0.53* /pcs.
